Complete Engineering Documentation at Your Fingertips

Every Spec, Test, and Certification You Need to Move Forward

Access comprehensive technical documentation that satisfies engineers, passes permitting, and proves the SAFE-T® Lane product performs. From CAD files to compliance certificates, get the data that transforms decision-making from guesswork to confidence.

Request a file

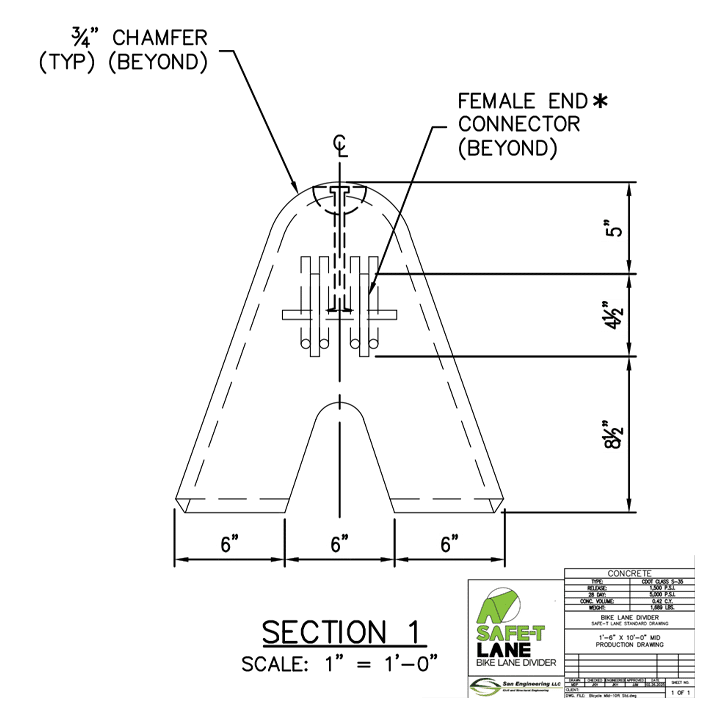

Technical drawing of a triangular bike lane divider section with labeled dimensions, connector details, and Safety Lane branding at the bottom right, shown at a 1"=1' scale.
A large, solid green right-pointing triangle set against a light background.

Engineering Specs

A large, solid green right-pointing triangle set against a light background.

CAD Drawings

A large, solid green right-pointing triangle set against a light background.

Simulated Crash Report

A large, solid green right-pointing triangle set against a light background.

Compliance Docs

A large, solid green right-pointing triangle set against a light background.

Installation Guides

Technical Resources Overview

Engineering-Grade Documentation for Infrastructure Professionals

This technical resource center provides every specification, test result, and compliance document required for your infrastructure project. Whether you're evaluating barrier performance, preparing permit applications, designing street layouts, or planning installation logistics, you'll find detailed documentation that meets the rigorous standards of transportation engineering.

Our commitment to transparency means you get complete access to third-party computer-simulated crash results, detailed material specifications, and engineering drawings that integrate seamlessly with your existing workflows. Each document is prepared to satisfy municipal requirements, federal standards, and engineering best practices—eliminating the back-and-forth that delays critical safety projects.

Available Resources

Comprehensive Technical Data for Project Planning

Download detailed specifications covering:

Specific certificate of compliance available.

Quick Reference Specifications

Key Technical Data at a Glance

Physical Properties
A large, solid green right-pointing triangle set against a light background.

Length – 10 feet (3.05 m)

A large, solid green right-pointing triangle set against a light background.

Height – 18 inches (45.7 cm)

A large, solid green right-pointing triangle set against a light background.

Base Width – 18 inches (45.7 cm)

A large, solid green right-pointing triangle set against a light background.

Weight – 1,700 lbs (771 kg)

A large, solid green right-pointing triangle set against a light background.

Concrete Strength –  5,000+ PSI

A large, solid green right-pointing triangle set against a light background.

Steel Grade – ASTM A572 & ASTM A615

Performance Ratings
A large, solid green right-pointing triangle set against a light background.

Crash Test – 31 MPH certified

A large, solid green right-pointing triangle set against a light background.

Impact Angle – 15 degrees

A large, solid green right-pointing triangle set against a light background.

Vehicle Weight – 5,079 lbs

A large, solid green right-pointing triangle set against a light background.

Deflection – <6 inches

A large, solid green right-pointing triangle set against a light background.

Service Life –  20+ years

A large, solid green right-pointing triangle set against a light background.

Temperature Range – -40°F to 120°F

Certifications
A large, solid green right-pointing triangle set against a light background.

ADA accessible designs

A large, solid green right-pointing triangle set against a light background.

Patent pending

A large, solid green right-pointing triangle set against a light background.

Made in USA

A stylized version of the United States flag with "USA" written in white block letters inside the blue field, replacing the usual stars. Red and white horizontal stripes fill the rest of the flag.
A large, solid green right-pointing triangle set against a light background.

NPCA Certified

Technical Support

Direct Access to Engineering Expertise

Have Technical Questions?

Our engineering team is available to discuss:

A large, solid green right-pointing triangle set against a light background.

Site-specific applications

A large, solid green right-pointing triangle set against a light background.

Custom configurations

A large, solid green right-pointing triangle set against a light background.

Integration challenges

A large, solid green right-pointing triangle set against a light background.

Specification clarifications

A large, solid green right-pointing triangle set against a light background.

Testing methodologies

A large, solid green right-pointing triangle set against a light background.

Installation optimization

Connect With Our Engineers
A bearded man with short dark hair, wearing a plaid shirt, smiles at the camera. The photo is framed by a circle of green dots on a white background.

Tyler Brookhart Lead Infrastructure Specialist

Office Hours

M-F 8:00 AM - 5:00 PM MST

A large, solid green right-pointing triangle set against a light background.

Emergency Support: 24/7 for active projects

Contact Us

Need Something Specific?

If you require additional documentation, custom drawings, or project-specific information:

request CAD Drawings
